100% Polyester Felt Roller Sleeve

Highest temperature resistance: Thermostat 180°C. 180°C Polyester rollers are only used in saw gauge tables and normal temperature zone.

Product Specification:

  • Type: Felt Roller
  • Color: White
  • Density: 430g/m²·mm
  • Material: 100% Polyester
  • Thickness: 8mm-10mm
  • Condition: New
Inquiry Now

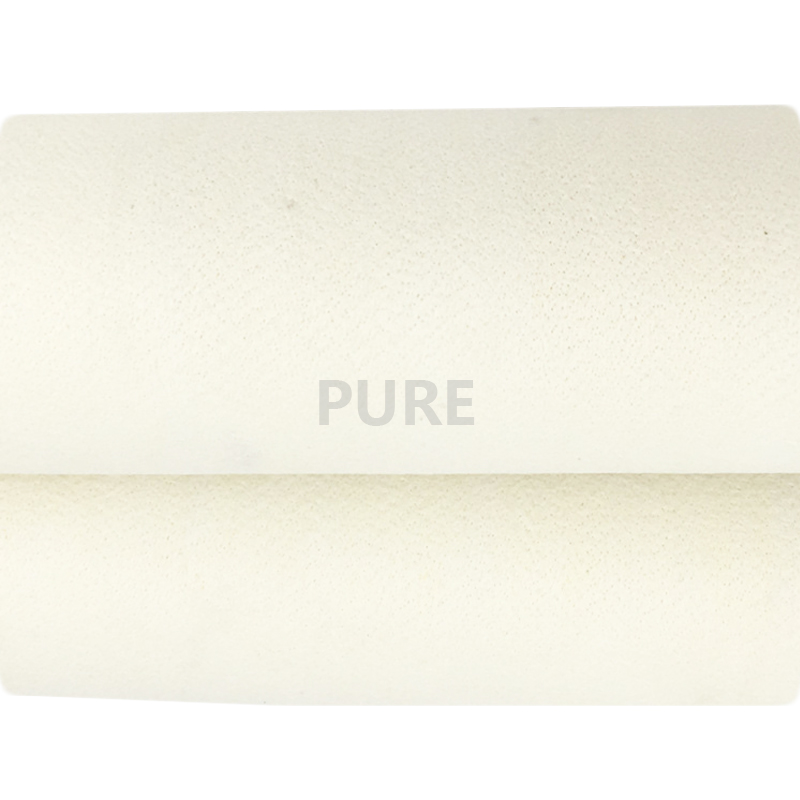

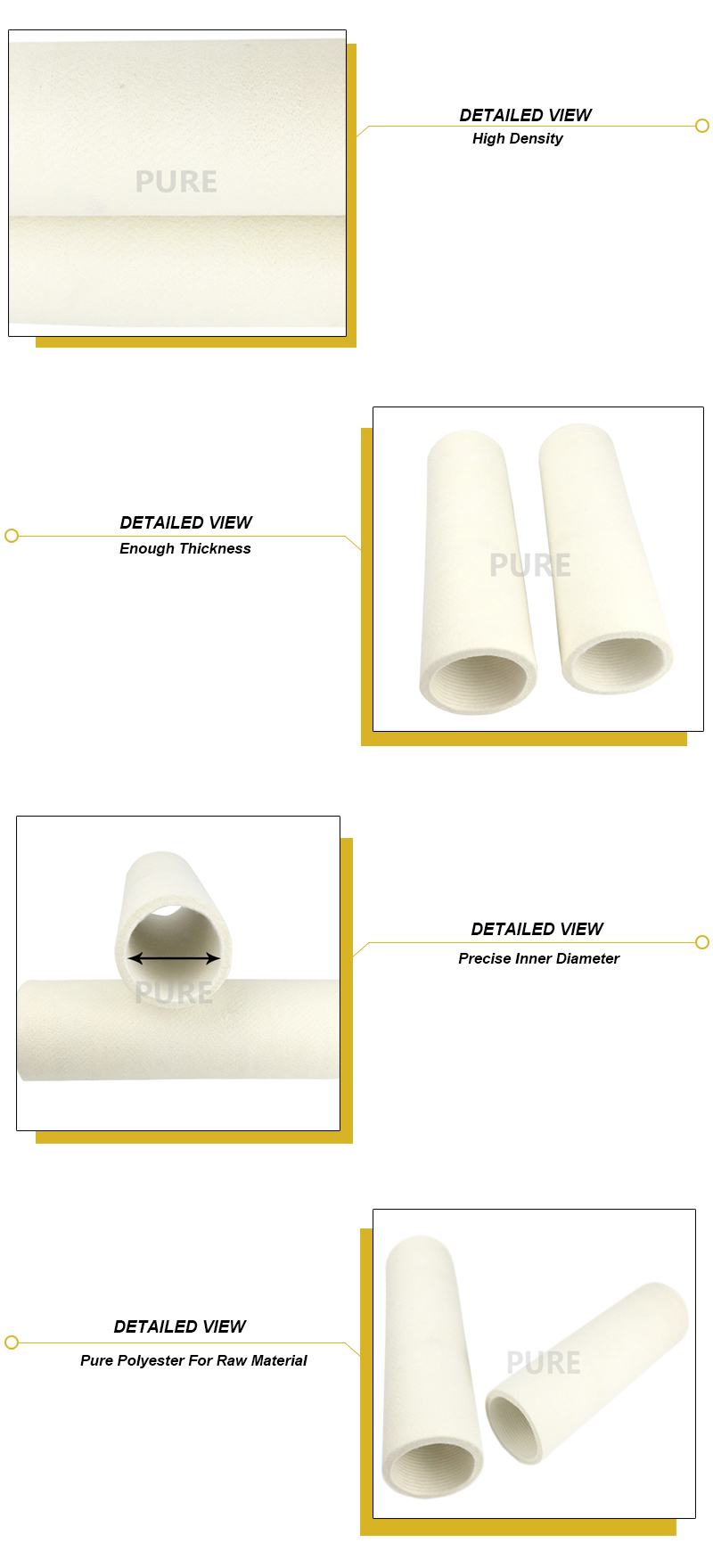

Polyester Felt Roller Detailed View

Polyester Felt Roller Detailed View

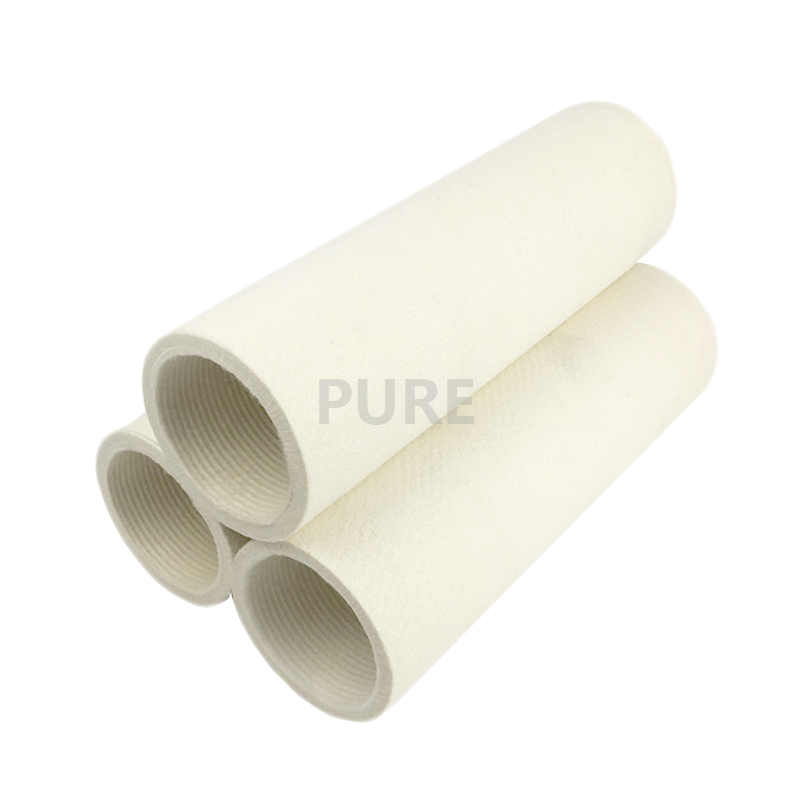

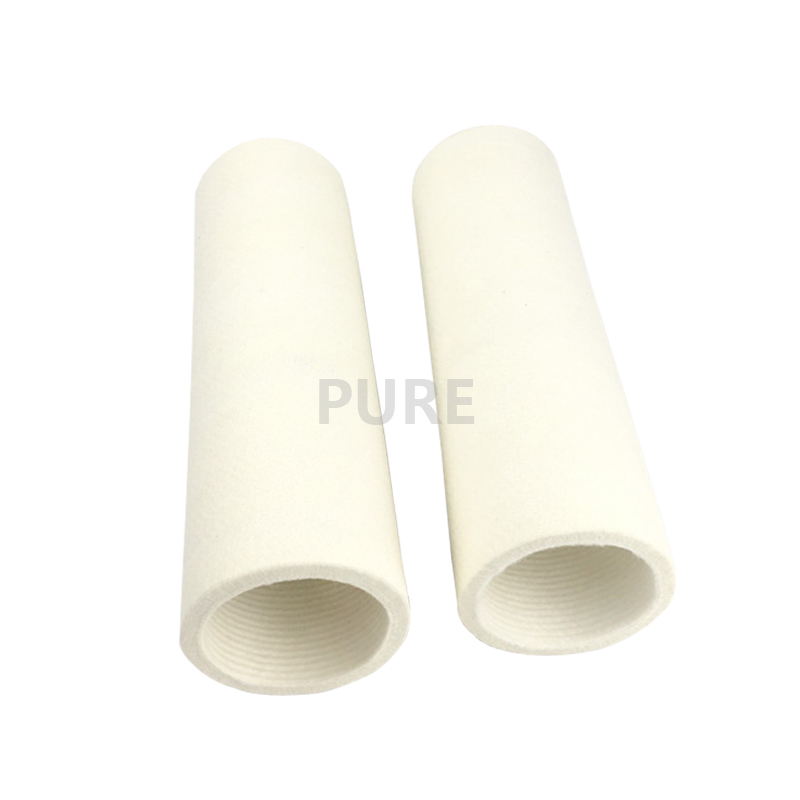

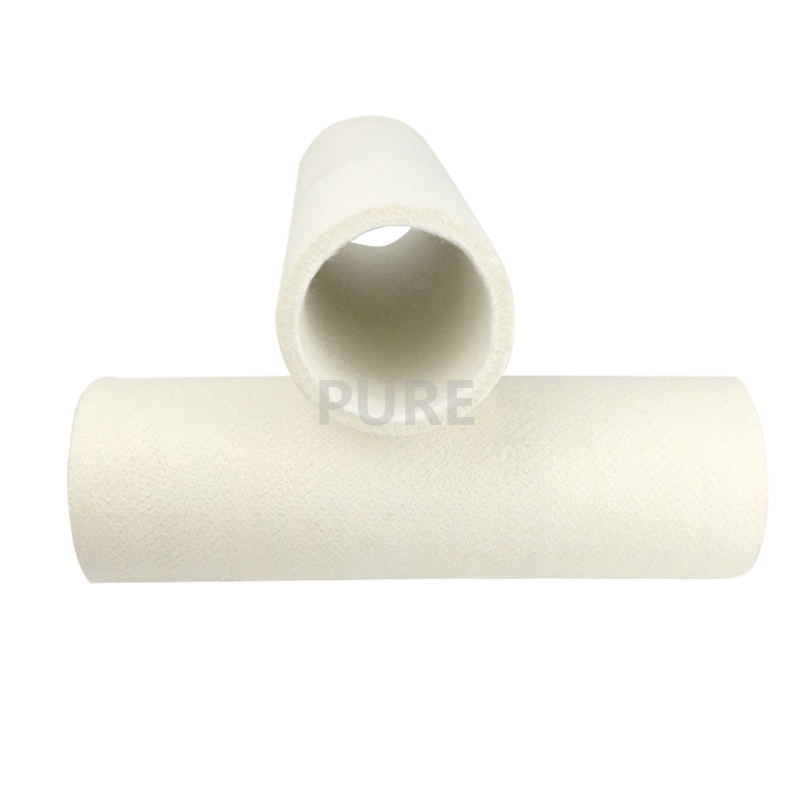

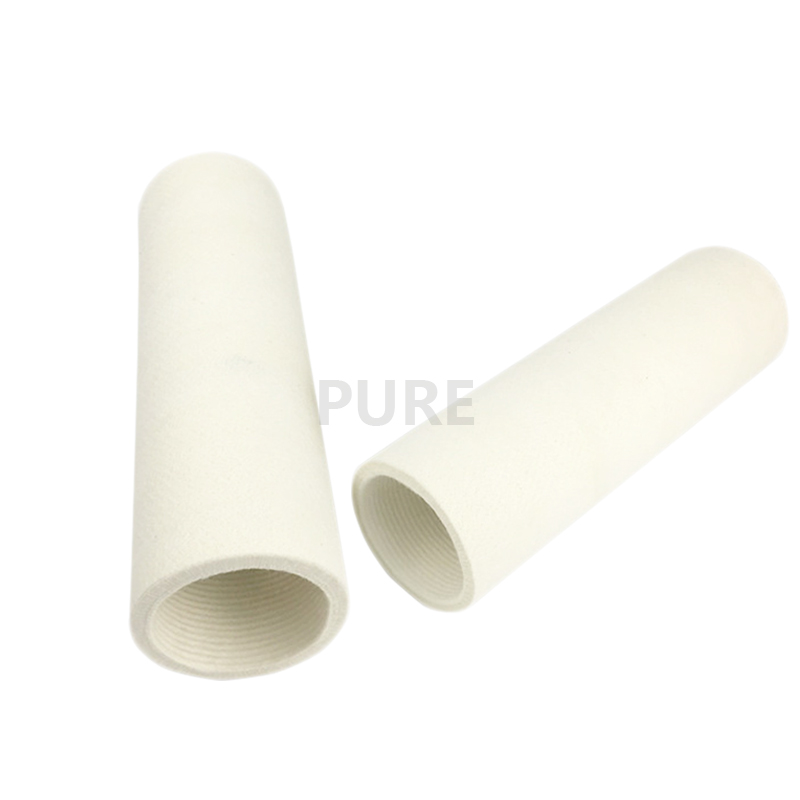

100% Polyester Felt Roller Sleeve

Applied in the low-temperature area of the extrusion production line, the advantage is high density, temperature resistance and wear resistance, smooth cut, no delamination, no hair, no pollution to the aluminum profile


Brand Name: PURE Type: Felt Roller
Model Number: Roller-PE Material: Polyester
Color: White Temperature: 180 ℃
Density: 430g/m²·mm Technique: Needle Punch
Load Capacity: Below 2000T UST Extruder Aluminum Profiles Dimension(L*W*H): Customized Size
Application: Aluminum Industry Place of Origin: Guangdong, China



Endless & Seamless attributes conveyor felt roller tube no joints and seams. It has no weak spots and is uniform in thickness.

The aluminum extrusion roller is flat with no blemishes, bumps, scales. The surface is extremely smooth. Will not contaminate aluminum. especially suitable for the production of aluminum products with extremely high requirements for electrophoretic surfaces and polished surfaces.

The felt fiber is 100% pure, without any impurities, the higher the purity, the higher the quality, the heat-resistant temperature meets the requirements, the abrasion resistance, and the effective use time is longer than other manufacturers.

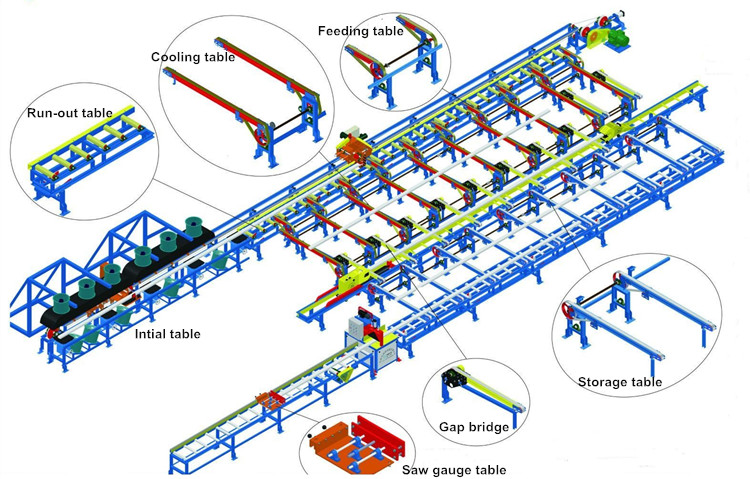

Polyester Seamless Felt Roller is only suitable for finished saw table in aluminum handling system, the polyester drum only used at the room-temperature area or low temp zone.  Felt for aluminum extrusion


How to make Polyester Felt Roller

Polyester fiber

Is a synthetic fiber obtained by spinning polyester formed by polycondensation of organic dibasic acid and diol.
The advantage of polyester fiber is that it has good wrinkle resistance and shape retention, and has high strength and elastic recovery ability. It is durable, anti-wrinkle, non-ironing, and non-sticky.
The softening point T of polyester is 230-240℃, the melting point Tm is 255-265℃, and the decomposition point T is about 300℃. Polyester can burn in fire, curl, and melt into beads, with black smoke and aromatic smell.

Polyester fiber


Carding machine opens and combs heat resistant fibers to remove impurities.
The curled or lumpy fiber mass will become a state of a straight single fiber.
And At the same time, in the ginning process, it can remove the impurities and short lint in the fibers.
Ensuring the uniformity of the warp and weft tensile, length, and number of yarns in the base fabrics, under strictly controlled temperature and humidity conditions.
In the final stage of carding, the needle machine will punch the pure Polyester fibers to become the felt layer.

How to make high temperature felt

Weaving Laying

The fiber enters the web-laying machine, takes an approach to automation using robots, ensures consistent high quality and productivity.
The web-laying trolley is driven by a toothed belt to cross-fold the polyester fiber single web output from the carding machine.
Our weaving employs sophisticated tension management technologies to make it into a multi-layer web with the required width and unit weight

High temperature felt manufacturer


Full resin or semi-resin treatments are available to improve the wear resistance and durability of the conveyor roller cover. It also prevents aluminum swarf or dirt from sticking to the felt, reducing damage to the surface of aluminum profiles.

Felt manufacturing process


The polyester heat resistant roller is cut with an electric rotating fabric cutting machine. Whether in terms of specifications or quality, Pure® felt tubes can perfectly meet customer needs. Using superb technology and machinery, cut out the size required by the customer, and cut out the edge-free felt roller.

cut felt


All the finished products will be inspected by our professional-quality control staff with metal detector equipment, to ensure all products are inspected and there are no broken needles inside the felt. Foshan Pure technology always insists that we’ll only deliver the goods to our customers after our products pass a series of rigorous tests.

Quality inspection


Payment method

The industrial high temperature roller manufactured by Foshan Pure Technology can use T/T, Paypal, Western, Union, L/C, and other payment methods.

? Click the button in the bottom right corner to contact us for more payment methods ?

Delivery inspection

The heat resistant felt roller packaging

in the aluminum extrusion industry

uses a transparent shrink film to wrap

the entire felt to reduce the volume of

each product, facilitate packing in the box,

and be waterproof.

Felt packaging

Delivery description

Industry Production Time DHL & TNT Shipping Time Sea Transportation Time
Aluminum industry 7 Days   20 Days or more
Textile industry 7 Days 7 Days
Laundry industry 10 – 14 Days 7 Days
Steel industry 30 Days 7 Days
High temperature resistant Kevlar gloves 20 Days 7 Days


After-sales service

Professional technical team to provide you with tailor-made services.
According to the specifications and requirements provided by customers, design and manufacture products that meet the requirements

Professional instruction to achieve the purpose of reducing costs, such as which level of cooling bed to use which temperature conveyor roller covers. How to use the one that can extend the life of the felt roller.

Professional aluminum extrusion plant construction experience, one-stop service, in addition to high temp felt, it also provides extrusion press, aging furnace, mold, casting platform, Aluminum profiles packing machine, correction machine, aluminum motor, handing system, etc.

Foshan Pure Technology Co., Ltd

Factory production line, warehouse environment

Foshan Pure Technology Co., Ltd. felt manufacturing plant has advanced and brand-new felt production machines, including 1 brand new carding machine, 2 endless belt machines, 6 drum machines, 1 setting machine, 4 sewing machines, and an annual production capacity of 3000 ten thousand.
Main markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, China market

Company Qualification

Company culture

Vision: To be a leader of heat-resistant felt in the world, to be an enterprise that is respected

Mission: Promote industry progress, contribute to social development

Values: Quality Is Life! Service Is Life! Honesty Is Life!

We are to provide high quality supplies and solutions to reduce marginal costs for the boss who has problems in purchasing machinery spare parts. Leading manufacturer of heat resistant felt belt – Pure Technologies Ltd

Frequently Asked Questions

Q: What information do I need to provide?
A: Need to provide felt rollers size, machine model and picture, delivery address, and zip code to calculate shipping

Q: What is the process of placing an order?
A: Contact us for polyester needled felt roller size and quotation, We provide you with an invoice-remit the money to the bank account-arrange the heat resistant felt production after receiving the payment-settle the balance before shipment- send out the felt rollers – receive the goods

Q: Are there any additional costs?
A: Additional taxes and fees are determined by your local customs duties

Q: Where is the origin of the fiber?
A: The low-temperature fiber polyester has a temperature resistance of 180 degrees and is produced in Yantai, China.
Nomex, a medium-temperature fiber with a temperature resistance of 280 degrees, comes from the USA.
The high-temperature fiber Kevlar has a temperature resistance of 480 degrees and is produced in the USA.
The PBO fiber has a temperature resistance of 600 degrees and the place of origin comes from Japan.

Q: A small part of the low-temperature felt tube at the production site is melted away by the aluminum material. Will it affect the use? What caused it?
A: It is recommended to replace it immediately if it affects the use. It is caused by moving the aluminum material without cooling well or due to poor rotation.
