100% Nomex Ironer Padding

Suitable for ironing operation at high speed and high temperature Manufactured from 100% Nomex fibers,below 240°C.

Product Specification:

  • Type: Ironer Padding
  • Color: Off-White
  • Width: 3.3m,3.6m,3.8m
  • Density: 700g/m²·mm,900g/m²·mm
  • Material: 100% Nomex
  • Thickness: 3mm,5mm
Inquiry Now

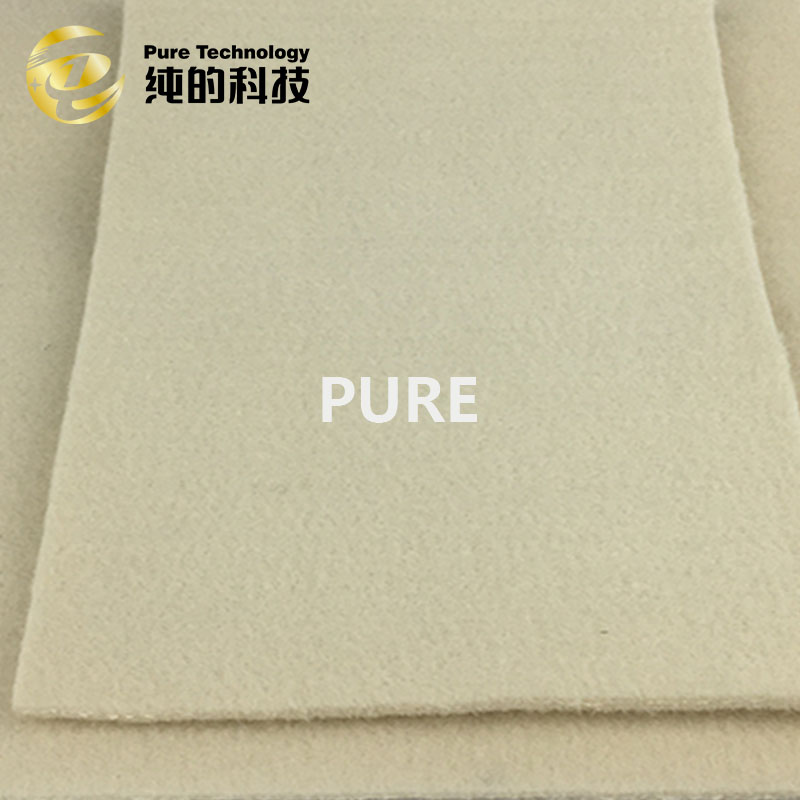

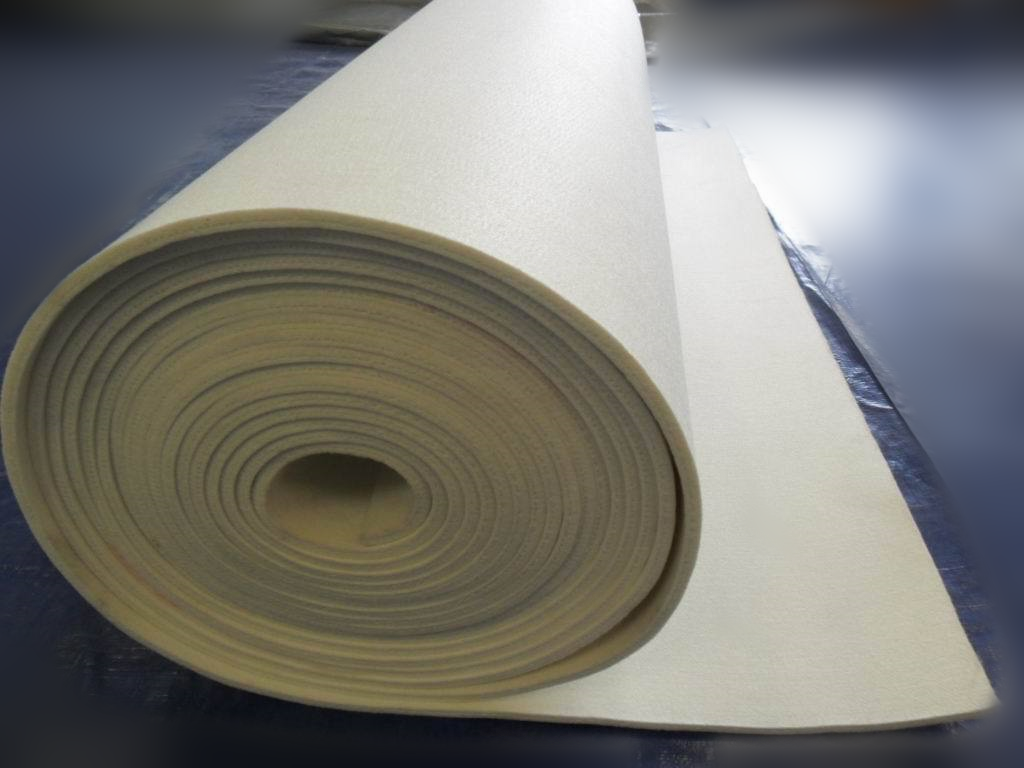

Nomex Ironer Padding

Manufactured from 100% Nomex fibers, they are used on ironers running at high speeds and temperatures in excess of 180℃. Gas-preamble well, good thermal conductivity, smooth surface, elastic abrasion-resistance are their characteristics.


Brand Name: PURE Type: Ironer Padding
Model Number: Ironer-N Material: 100% Nomex
Color: Off-White Temperature: Below 240 ℃
Density: 700g/m²·mm,900g/m²·mm Application: Suitable for ironing operation at high speed and high temperature, the Laundry industry

Customized Size,

Material Feature: Pale yellow, oil heated



Endless and seamless attribute conveyor felt belt without joints and seams. It has no weaknesses and has a flat thickness.

The felt for the industrial laundry ironing machine equipment is flat with no blemishes, bumps, scales. Good heat resistance, high stability, long life. It allows for easier installation and less downtime. good dimensional stability, abrasion resistance.

The high temperature felt material is 100% pure, without any impurities, the higher the purity, the higher the quality, the heat-resistant temperature meets the requirements, the abrasion resistance, and the effective use time is longer than other manufacturers.

ironer padding feltNomex Ironer Padding blanketnomex ironer blanket



The Flatwork ironer padding is suitable for ironing operation at high speed and high temperature. special high temperature one turn felt for oil heated ironer. Use in the heated chest ironers.

laundry Ironer machine


Company Qualification

We actively promote the modern enterprise management system and were awarded ISO9001:2008 EWC quality system certificate etc.
We have QC staff to inspect every process and raw materials to ensure the products in good quality. Advanced equipment like mechanical needling and carding machine etc.


How to make Nomex Conveyor Belt

Nomex fiber

A meta-aramid, also known as aramid 1313. It is characterized by good heat resistance and high strength. Its material properties can remain stable for a long time at a temperature of 250°C. It has excellent high temperature resistance, flame retardant, non-toxic, and its needle punched products are mainly used as Nomex aramid felt.

Nomex fiber


Carding machine opens and combs heat resistant fibers to remove impurities.
The curled or lumpy fiber mass will become a state of a straight single fiber.
And At the same time, in the ginning process, it can remove the impurities and short lint in the fibers.
Ensuring the uniformity of the warp and weft tensile, length, and a number of yarns in the base fabrics, under strictly controlled temperature and humidity conditions.
In the final stage of carding, the needle machine will punch the pure Nomex fibers to become the temperature resistant felt layer.

How to make high temperature felt

Weaving Laying

The fiber enters the web-laying machine, takes an approach to automation using robots, ensures consistent high quality and productivity.
The web-laying trolley is driven by a toothed belt to cross-fold the Nomex fiber single web output from the carding machine.
Our weaving employs sophisticated tension management technologies to make it into a multi-layer web with the required width and unit weight.

High temperature felt manufacturer


Full resin or semi-resin treatments are available to improve the wear resistance and durability of the Nomex endless felt belt. It also prevents aluminum swarf or dirt from sticking to the industrial felt, reducing damage to the surface of aluminum profiles.

Felt manufacturing process


The Nomex heat resistant felt is cut with an electric rotating fabric cutting machine. Whether in terms of specifications or quality, Pure® felt tubes can perfectly meet customer needs. Using superb technology and machinery, cut out the size required by the customer, and cut out the edge-free Industrial felt belt.

cut felt


All the finished products will be inspected by our professional-quality control staff with metal detector equipment, to ensure all products are inspected and there are no broken needles inside the heat proof Nomex belt covers. Foshan Pure technology always insists that we’ll only deliver the goods to our customers after our products pass a series of rigorous tests.

Quality inspection


Delivery inspection


Our company’s heat resistant felt packaging in the textile industry is packaged in orange strong woven bags. It is more waterproof and more wear-resistant. Escort the products you choose from our company! Please look for our packaging.


textile felt blanket packaging


After-sales service

Professional technical team to provide you with tailor-made services.
According to the flatwork machine belt specifications and requirements provided by customers, design and manufacture products that meet the requirements.

Professional instruction to achieve the purpose of reducing costs, such as which level of cooling bed to use which temperature industrial ironer belt. How to use the one that can extend the life of the flatwork padding.

Professional procurement Services Team, we often sell laundry padding and have met many friends in the laundry industry, Cooperative customers can purchase laundry machines,
such as Chicago, Braun, Sharp, Electrolux, Jenson, etc brands, flatwork ironer. Commercial laundry equipment, roll ironer laundry, Reduce trouble, and get a preferential price.

Frequently Asked Questions

Q: What information do I need to provide?
A: Need to provide polyester padding size, machine model and picture, delivery address, and zip code to calculate shipping

Q: What is the process of placing an order?
A: Contact us for Nomex blanket size and quotation, We provide you with an invoice-remit the money to the bank account-arrange the heat resistant felt production after receiving the payment-settle the balance before shipment- send out the felt rollers – receive the goods

Q: Are there any additional costs?
A: Additional taxes and fees are determined by your local customs duties

Q: Where is the origin of the fiber?
A: The low-temperature fiber polyester has a temperature resistance of 180 degrees and is produced in Yantai, China.
Nomex, a medium-temperature fiber with a temperature resistance of 280 degrees, comes from the USA.
Nomex Polyester



We are to provide high quality supplies and solutions to reduce marginal costs for the boss who has problems in purchasing machinery spare parts. Leading manufacturer of heat resistant felt belts Nomex felt factory – Pure Technologies Ltd.
