100% Polyester Ironer Belt

100% Polyester Ironer Belt are used on laundry ironer machine, Their working temperature range is below 170℃.


Product Specification:

  • Type: Ironer Belt
  • Color: White
  • Weight: 150mm,200mm
  • Length: 50m/roll,100m/roll
  • Density: 1000g/m²·mm-2200g/m²·mm
  • Material: 100% Polyester
Inquiry Now

Polyester Ironer Belt

Needle Felt., Flatwork ironer Feeder Belt.width: 100mm, 150mm, 200mm (Production according to customer requirements),Tgucjbess: 2mm – 6mm.

Specifications

Brand Name: PURE Type: Ironer Belt
Model Number: Carton Box Material: 100% Polyester
Color: White Temperature: Below 170 ℃
Density: 100g/m²·mm-2200g/m²·mm Application: Applied to an ironing machine
Dimension(L*W*H): Customized Size Technique: Needle Punch

Advantages

Endless and seamless attribute conveyor felt belt without joints and seams. It has no weaknesses and has a flat thickness.

The felt for the laundry flat iron machine is flat with no blemishes, bumps, scales. Good heat resistance, high stability, long life. It allows for easier installation and less downtime. good dimensional stability, abrasion resistance.

The high temperature felt material is 100% pure, without any impurities, the higher the purity, the higher the quality, the heat-resistant temperature meets the requirements, the abrasion resistance, and the effective use time is longer than other manufacturers.


Payment method

The industrial Flatwork ironer belt Flatwork machine belt manufactured by Foshan Pure Technology can use T/T, Paypal, Western, Union, L/C, and other payment methods.

👋 Click the button in the bottom right corner to contact us for more payment methods. 👋

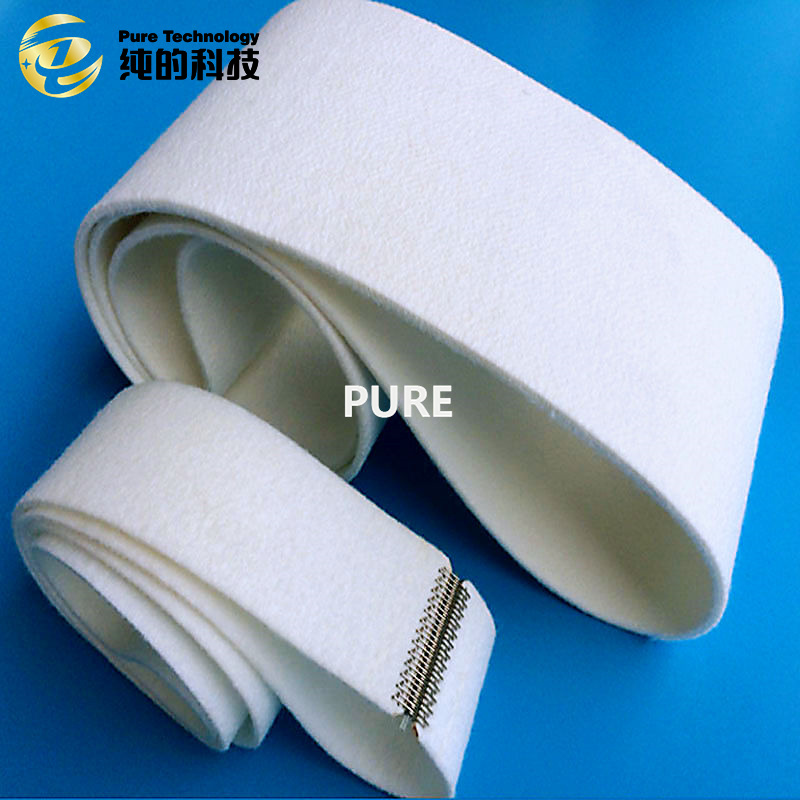

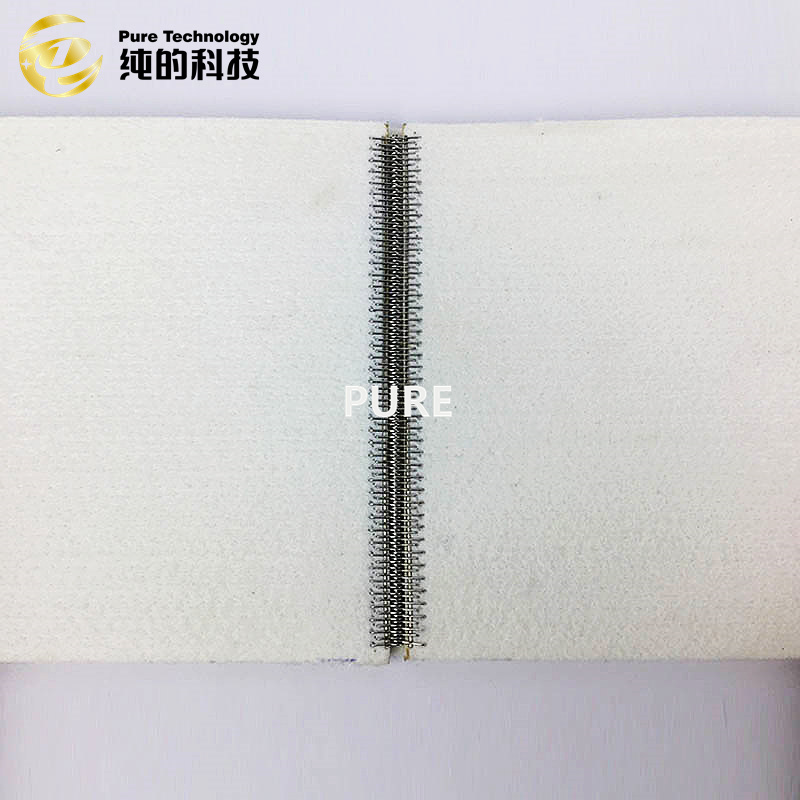

Polyester Felt Belt Detailed View

Polyester Ironer BeltFolding Machine BeltIroner Belt price



Application

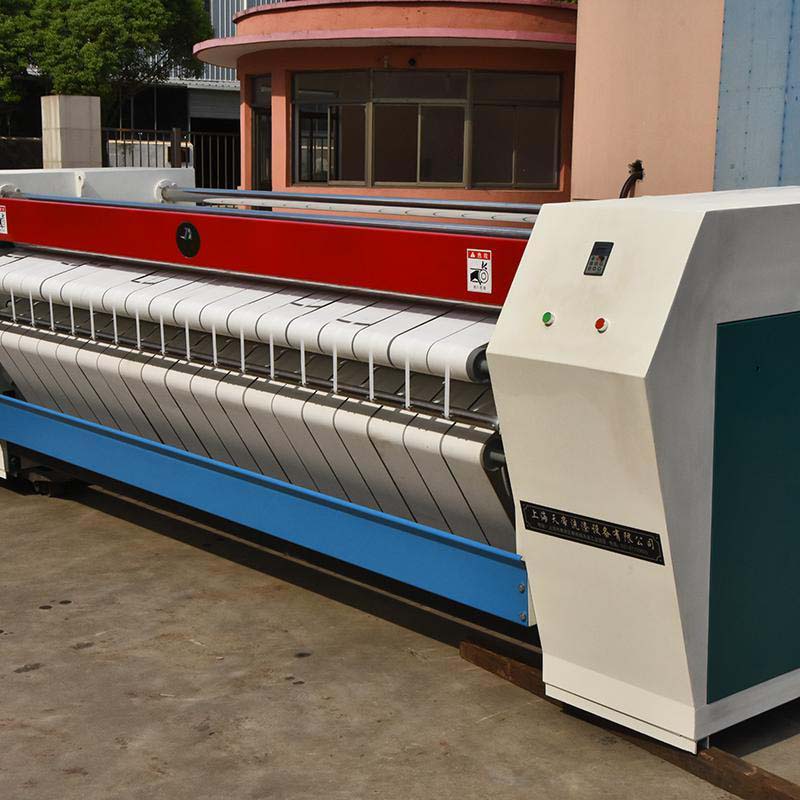

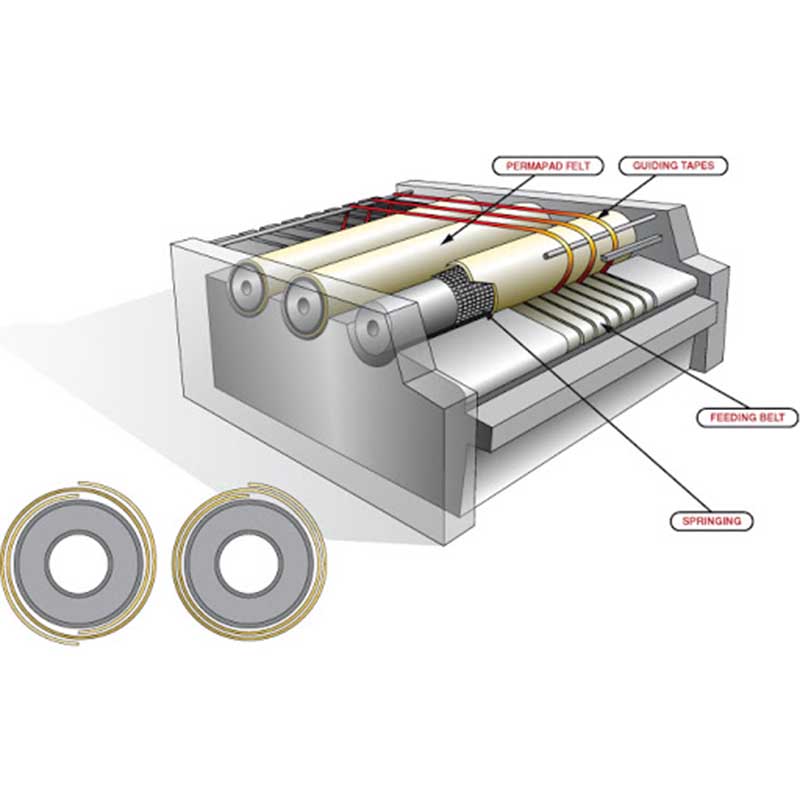

The Flatwork ironer belt was applied to the ironing machine. Suitable for imported machines and oil heating mediums.Used on Roller Ironer machine for Laundry. laundry commercial equipment. ironing machine commercial. Hotel Flatwork ironer belt. Felt for laundry industry.

Cleanpro Flatwork Ironer & Folding Machine

Company Qualification

We actively promote the modern enterprise management system and were awarded ISO9001:2008 EWC quality system certificate etc.
We have QC staff to inspect every process and raw materials to ensure the products in good quality. Advanced equipment like mechanical needling and carding machine etc.



How to make Polyester Endless Belt



Polyester fiber

Is a synthetic fiber obtained by spinning polyester formed by polycondensation of organic dibasic acid and diol.
The advantage of polyester fiber is that it has good wrinkle resistance and shape retention, and has high strength and elastic recovery ability. It is durable, anti-wrinkle, non-ironing, and non-sticky.
The softening point T of polyester is 230-240℃, the melting point Tm is 255-265℃, and the decomposition point T is about 300℃. Polyester can burn in fire, curl, and melt into beads, with black smoke and aromatic smell.

Polyester fiber

Carding

Carding machine opens and combs heat resistant fibers to remove impurities.
The curled or lumpy fiber mass will become a state of a straight single fiber.
And At the same time, in the ginning process, it can remove the impurities and short lint in the fibers.
Ensuring the uniformity of the warp and weft tensile, length, and a number of yarns in the base fabrics, under strictly controlled temperature and humidity conditions.
In the final stage of carding, the needle machine will punch the pure Polyester fibers to become the high heat felt layer.

How to make high temperature felt

Weaving Laying

The fiber enters the web-laying machine, takes an approach to automation using robots, ensures consistent high quality and productivity.
The web-laying trolley is driven by toothed belts to cross-fold the Polyester fiber single web output from the carding machine.
Our weaving employs sophisticated tension management technologies to make it into a multi-layer web with the required width and unit weight.

High temperature felt manufacturer

Hardened

Full resin or semi-resin treatments are available to improve the wear resistance and durability of the Polyester conveyor belt. It also prevents aluminum swarf or dirt from sticking to the industrial felt, reducing damage to the surface of aluminum profiles.

Felt manufacturing process

Cutting

The Polyester heat resistant belt is cut with an electric rotating fabric cutting machine. Whether in terms of specifications or quality, Pure® felt tubes can perfectly meet customer needs. Using superb technology and machinery, cut out the size required by the customer, and cut out the edge-free Industrial felt roller.

cut felt

Inspection

All the finished products will be inspected by our professional-quality control staff with metal detector equipment, to ensure all products are inspected and there are no broken needles inside the heat proof polyester belt covers. Foshan Pure technology always insists that we’ll only deliver the goods to our customers after our products pass a series of rigorous tests.

Quality inspection



Delivery inspection



Our company’s heat resistant felt packaging in the textile industry is packaged in orange strong woven bags. It is more waterproof and more wear-resistant. Escort the products you choose from our company! Please look for our packaging.



textile felt blanket packaging



After-sales service

Professional technical team to provide you with tailor-made services.
According to the ironer laundry belt specifications and requirements provided by customers, design and manufacture products that meet the requirements.

Professional instruction to achieve the purpose of reducing costs, such as which level of cooling bed to use which temperature Polyester felt ironer belt. How to use the one that can extend the life of the Folding Machine Cotton Belt.

Professional procurement Services Team, we often sell laundry belts and have met many friends in the laundry industry, Cooperative customers can purchase laundry machines,
such as Chicago, Braun, Sharp, Electrolux, Jenson, etc brands, flatwork ironer. Commercial laundry equipment, roll ironer laundry,  Reduce trouble, and get a preferential price.


Frequently Asked Questions

Q: What information do I need to provide?
A: Need to provide conveyor belt size, machine model and picture, delivery address, and zip code to calculate shipping

Q: What is the process of placing an order?
A: Contact us for roll ironer laundry felt size and quotation, We provide you with an invoice-remit the money to the bank account-arrange the heat resistant felt production after receiving the payment-settle the balance before shipment- send out the felt rollers – receive the goods

Q: Are there any additional costs?
A: Additional taxes and fees are determined by your local customs duties

Q: Where is the origin of the fiber?
A: The low-temperature fiber polyester has a temperature resistance of 180 degrees and is produced in Yantai, China.
Nomex, a medium-temperature fiber with a temperature resistance of 280 degrees, comes from the USA.
Nomex Polyester






We are to provide high quality supplies and solutions to reduce marginal costs for the boss who has problems in purchasing machinery spare parts. Leading manufacturer of heat resistant felt belts Nomex felt factory – Pure Technologies Ltd.
