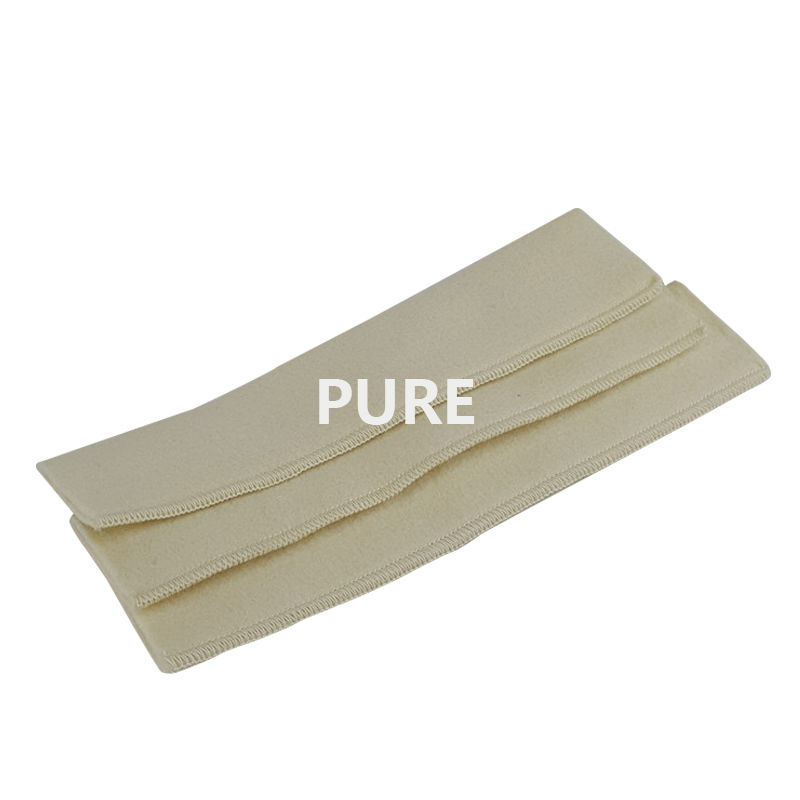

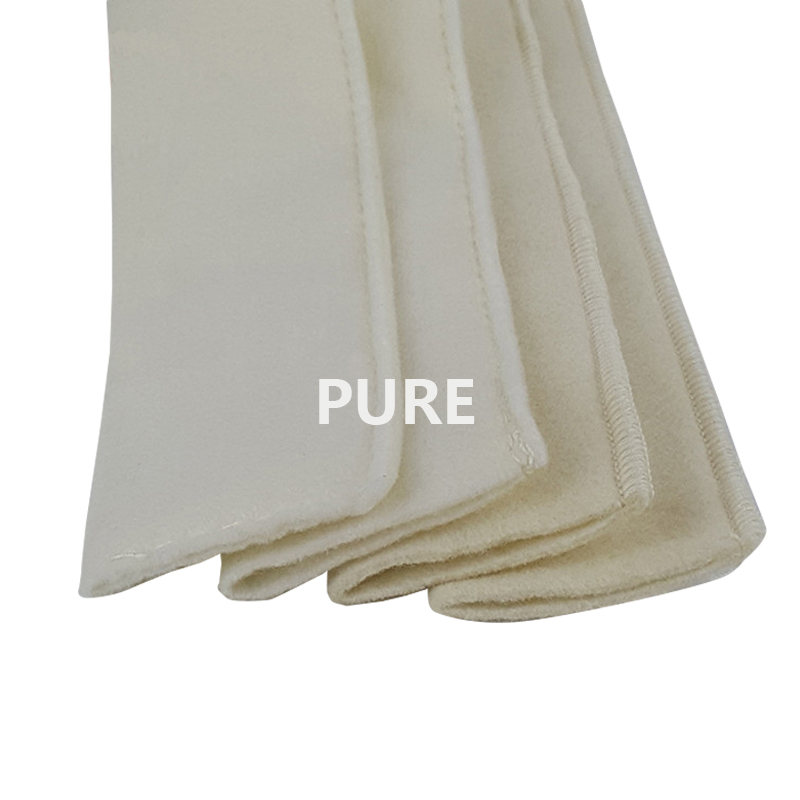

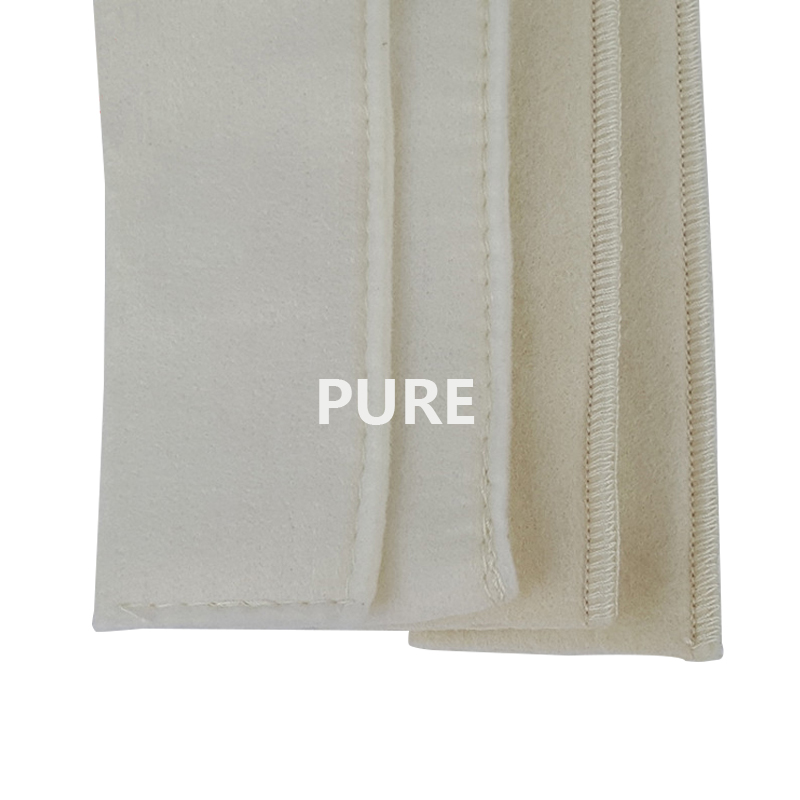

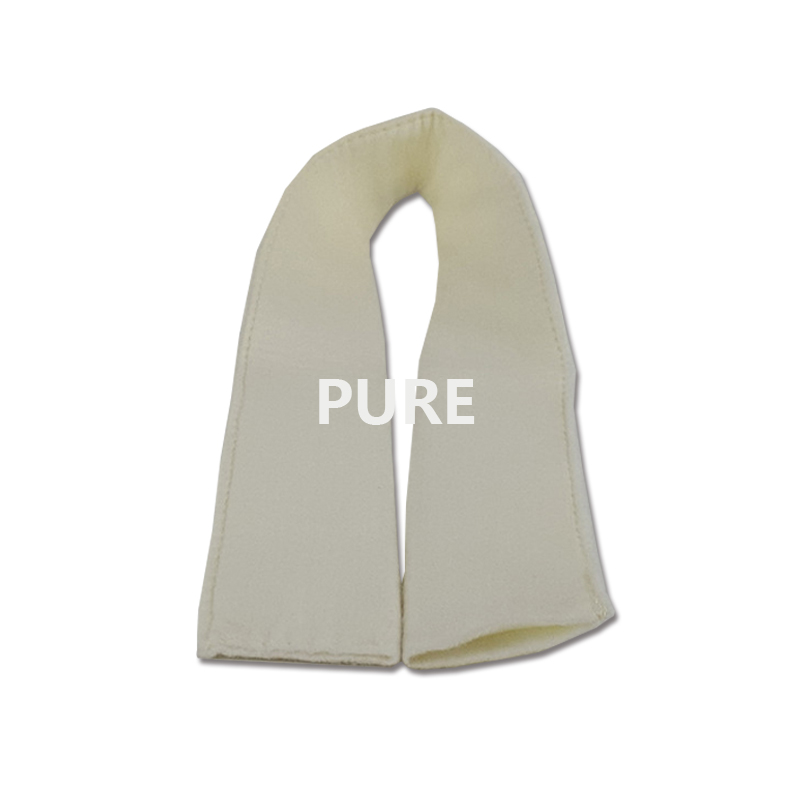

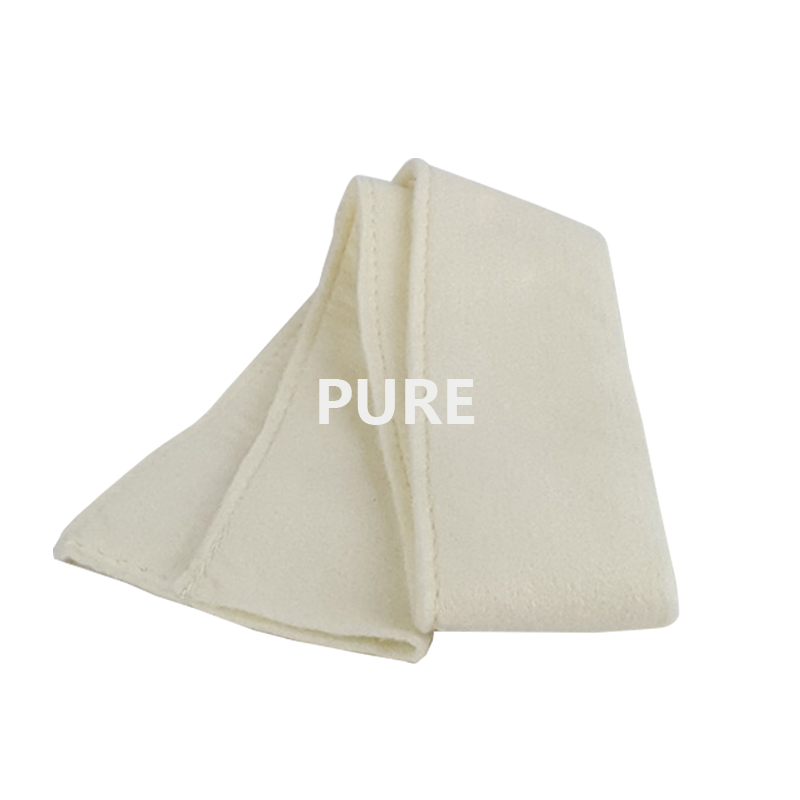

100% Nomex Spacer Bar Cover

For aging furnace We can produce viours specification sapcing material,spacer sleeve for the aging furnace.


Product Specification:

  • Type: Slat Conveyor
  • Color: Off-White
  • Width: 60mm-120mm
  • Length: 650mm-1200mm
  • Density: 250g/m²·mm
  • Material: 100% Nomex
Inquiry Now

100% Nomex Spacer Bar Cover

Heat Resistant Spacer Bar Sleeves Manufacturer & Supplier for Aging Ovens, No Fluff, Customizable, Fabric options include polyester, Nomex.

Specifications

Brand Name: PURE Type: Spacer bar sleeve
Model Number: N-S Material: Nomex
Color: Off-White Temperature: 280 ℃
Density: 250g/m²·mm Technique: Needle Punch
Packing: Carton Box Dimension(L*W*H): Customized Size
Application: Aluminum Industry Place of Origin: Guangdong, China



Advantages

Endless and seamless attribute Nomex space bar without joints and seams. It has no weaknesses and has a flat thickness.

The Nomex felt for aluminum profile is flat with no blemishes, bumps, scales. The surface is extremely smooth. Will not contaminate aluminum. especially suitable for the production of aluminum products with extremely high requirements for electrophoretic surfaces and polished surfaces.

The high temperature felt material is 100% pure, without any impurities, the higher the purity, the higher the quality, the heat-resistant temperature meets the requirements, the abrasion resistance, and the effective use time is longer than other manufacturers.


Payment method

The industrial high temperature Nomex spacer sleeve manufactured by Foshan Pure Technology can use T/T, Paypal, Western, Union, L/C, and other payment methods.

? Click the button in the bottom right corner to contact us for more payment methods. ?

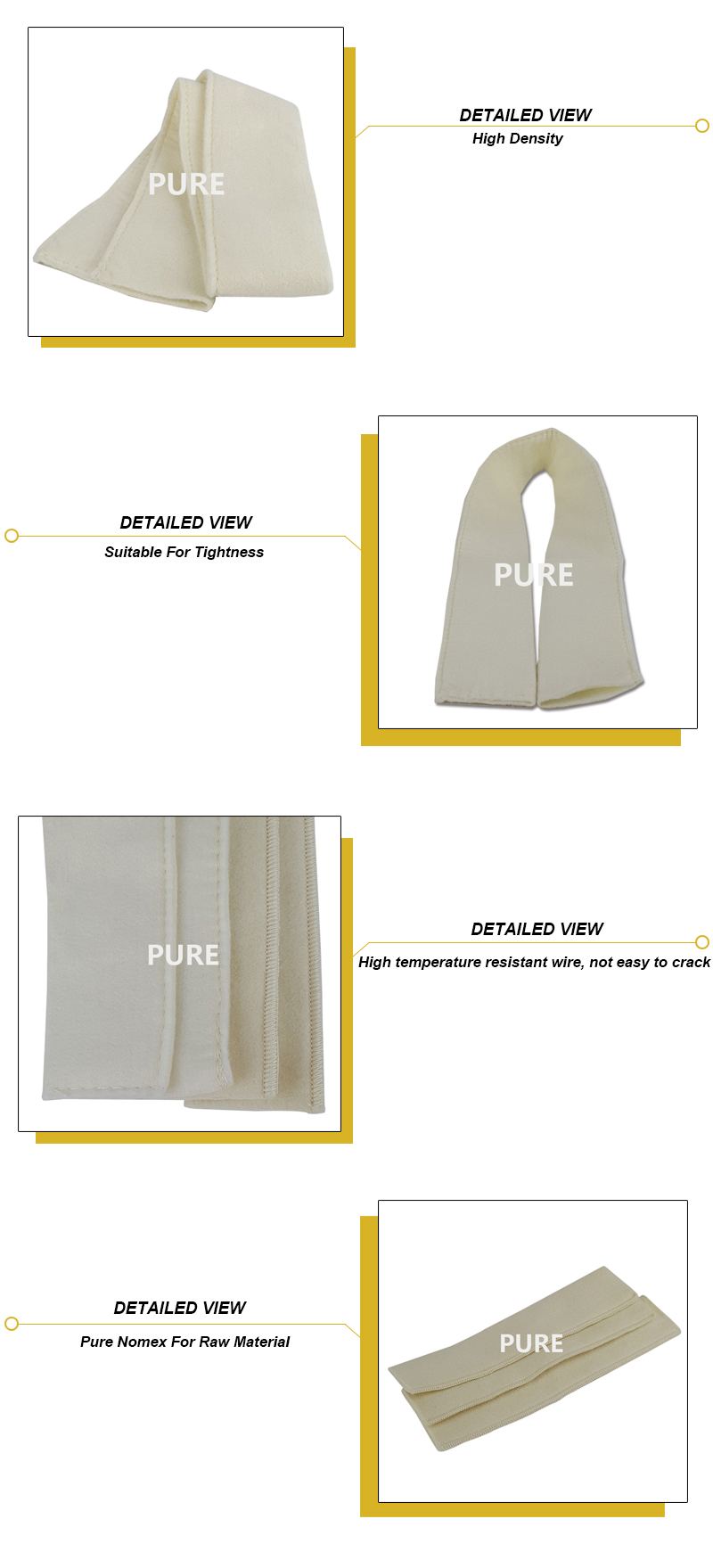

Aging Oven  Detailed View



Application

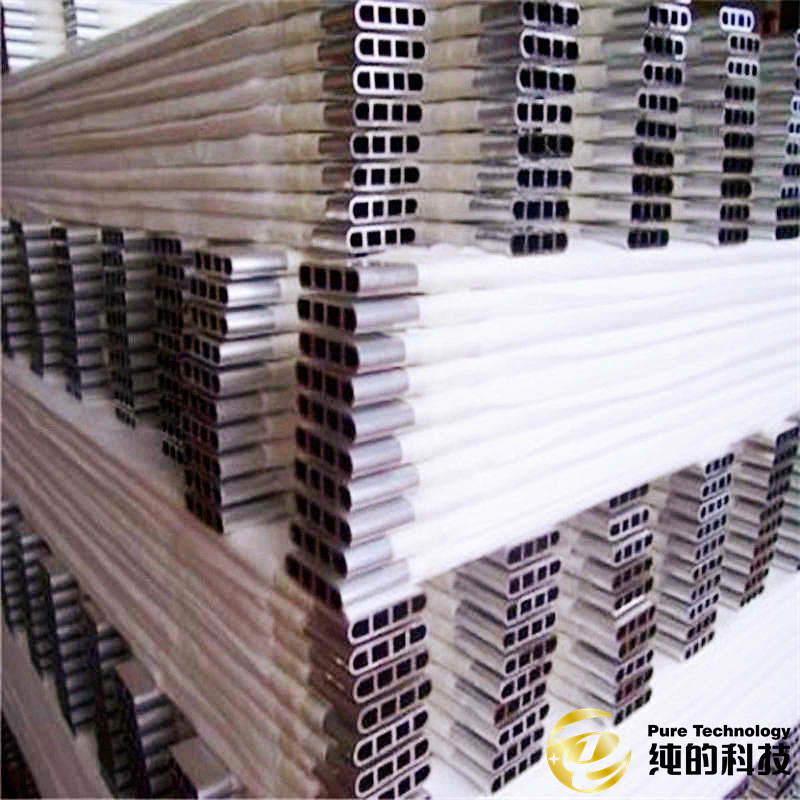

● Spacer sleeve for aging oven, The shrink sleeve shrinks with the heat around the spacer bar and fits snugly against the aluminum profile, which can then be stacked together in the next step.

Spacer sleeve for aging oven

Company Qualification

We actively promote the modern enterprise management system and were awarded ISO9001:2008 EWC quality system certificate etc.
We have QC staff to inspect every process and raw materials to ensure the products in good quality. Advanced equipment like mechanical needling and carding machine etc.



How to make a Space bar

Nomex fiber

A meta-aramid, also known as aramid 1313. It is characterized by good heat resistance and high strength. Its material properties can remain stable for a long time at a temperature of 250°C. It has excellent high temperature resistance, flame retardant, non-toxic, and its needle punched products are mainly used as Nomex aramid felt.

Nomex fiber

Carding

Carding machine opens and combs heat resistant fibers to remove impurities.
The curled or lumpy fiber mass will become a state of a straight single fiber.
And At the same time, in the ginning process, it can remove the impurities and short lint in the fibers.
Ensuring the uniformity of the warp and weft tensile, length, and a number of yarns in the base fabrics, under strictly controlled temperature and humidity conditions.
In the final stage of carding, the needle machine will punch the pure Nomex fibers to become the temperature resistant felt layer.

How to make high temperature felt

Weaving Laying

The fiber enters the web-laying machine, takes an approach to automation using robots, ensures consistent high quality and productivity.
The web-laying trolley is driven by a toothed belt to cross-fold the Nomex fiber single web output from the carding machine.
Our weaving employs sophisticated tension management technologies to make it into a multi-layer web with the required width and unit weight.

High temperature felt manufacturer

Hardened

Full resin or semi-resin treatments are available to improve the wear resistance and durability of the heat resistant spacer sleeve. It also prevents aluminum swarf or dirt from sticking to the industrial felt, reducing damage to the surface of aluminum profiles.

Felt manufacturing process

Cutting

The Nomex high temperature space bar cover is cut with an electric rotating fabric cutting machine. Whether in terms of specifications or quality, Pure® felt tubes can perfectly meet customer needs. Using superb technology and machinery, cut out the size required by the customer, and cut out the edge-free Industrial felt belt.

cut felt

Inspection

All the finished products will be inspected by our professional-quality control staff with metal detector equipment, to ensure all products are inspected and there are no broken needles inside the heat proof Nomex space bar. Foshan Pure technology always insists that we’ll only deliver the goods to our customers after our products pass a series of rigorous tests.

Quality inspection



Delivery inspection

The heat resistant Nomex spacer sleeve

packaging in the aluminum extrusion industry

uses a transparent shrink film to wrap

the entire felt to reduce the volume of

each product, facilitate packing in the box,

and be waterproof.

Felt packaging



After-sales service

Professional technical team to provide you with tailor-made services.
According to the industrial felt space bar specifications and requirements provided by customers, design and manufacture products that meet the requirements.

Professional instruction to achieve the purpose of reducing costs, such as which level of cooling bed to use which temperature Nomex felt spacer sleeve. How to use the one that can extend the life of the Spacer bar cover.

Professional aluminum extrusion plant construction experience, one-stop service, in addition to Nomex high temp felt, it also provides extrusion press, aging furnace, mold, casting platform, Aluminum profiles packing machine, correction machine, aluminum motor, handing system, etc.


Frequently Asked Questions

Q: What information do I need to provide?
A: Need to provide felt space sleeve size, machine model and picture, delivery address, and zip code to calculate shipping

Q: What is the process of placing an order?
A: Contact us for Nomex heat felt  size and quotation, We provide you with an invoice-remit the money to the bank account-arrange the heat resistant felt production after receiving the payment-settle the balance before shipment- send out the felt rollers – receive the goods

Q: Are there any additional costs?
A: Additional taxes and fees are determined by your local customs duties

Q: Where is the origin of the fiber?
A: The low-temperature fiber polyester has a temperature resistance of 180 degrees and is produced in Yantai, China.
Nomex, a medium-temperature fiber with a temperature resistance of 280 degrees, comes from the USA.
The high-temperature fiber Kevlar has a temperature resistance of 480 degrees and is produced in the USA.
The PBO fiber has a temperature resistance of 600 degrees and the place of origin comes from Japan.




We are to provide high quality supplies and solutions to reduce marginal costs for the boss who has problems in purchasing machinery spare parts. Leading manufacturer of heat resistant felt pads Nomex felt factory – Pure Technologies Ltd.
